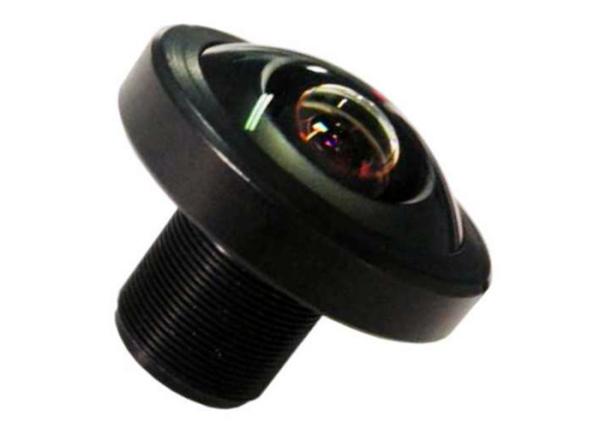

1/2.6" 1.08mm 10Megapixel M12 mount 200degree Fisheye Lens for OV10823 OV13850 IMX214

Name: 126quot 108mm 10Megapixel M12 mount 200degree Fisheye Lens for OV10823 OV13850 IMX214
Brand: CCOM LENS
Price: 1 USD

China 1/2.6" 1.08mm 10Megapixel M12 mount 200degree Fisheye Lens for OV10823 OV13850 IMX214 factory

Model Number : 1260108MP 1260108MPF

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Optical Lens : Fisheye lens for 360VR

Camera Lens : Wide-angle 200D fisheye lens

M12 Lens : S mount 4K fisheye lens

Constructure : Metal + glasses

Brand Name : CCOM LENS

Contact Now

High Definition Fisheye Lens

● High resolution

● Various application meet your requirements

● Compact design with cost-effective performance

● Custom design

● Super wide-angle with FOV up to 200° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option

1/2.6" 1.08mm F2.6 10Megapixel S mount M12*0.5 Mount 200degree IR Fisheye Lens for OV10823 OV13850 IMX214, suitable for 360 VR Camera panoramic lens, able to back-to-back image connection

MODEL 1260108MP
IMAGE FORMAT 1/2.6"
FOCAL LENGTH(mm) 1.08 / Φ3.5mm @200degrees
F.O.V. 1/2.6": 200°(D)*200°(H)*200°(V)
RESOLUTION 10MP
F-Theta DISTORTION <-7.71%
APERTURE F2.6
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(mm) 0.1
B.F.L.(mm) 3.26
T.T.L.(mm) 24.57
DIMENSION(mm) Φ26x21.9

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
