1/3" 0.99mm 10Megapixel M12 mount 210degree Fisheye Lens for IMX317 OV4689

Name: 13quot 099mm 10Megapixel M12 mount 210degree Fisheye Lens for IMX317 OV4689
Brand: CCOM LENS
Price: 1 USD

Model Number : 13099MP 13099MPF

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Optical Lens : Fisheye lens for 360VR

Camera Lens : Wide-angle 210D fisheye lens

M12 Lens : S mount 4K fisheye lens

Constructure : Metal + glasses

Brand Name : CCOM LENS

Contact Now

High Definition Fisheye Lens

● High resolution

● Various application meet your requirements

● Compact design with cost-effective performance

● Custom design

● Super wide-angle with FOV up to 210° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option

1/3" 0.99mm F2.2 10Megapixel S mount M12*0.5 Mount 210degree IR Fisheye Lens for IMX377 OV4689, suitable for 360 VR Camera panoramic lens, able to match 10MP sensors

MODEL 13099MP
IMAGE FORMAT 1/3" / Φ3.0mm(image circle)
FOCAL LENGTH(mm) 0.99
F.O.V. 210°(D)*210°(H)*210°(V)
RESOLUTION 10MP
F-THETA DISTORTION <-18.1%
APERTURE F2.2
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(mm) 0.1
B.F.L.(mm) 2.66 (0.5mm cover glass)
T.T.L.(mm) 17.0 (0.5mm cover glass)
R.I. >704%
Max. CRA 7.4°

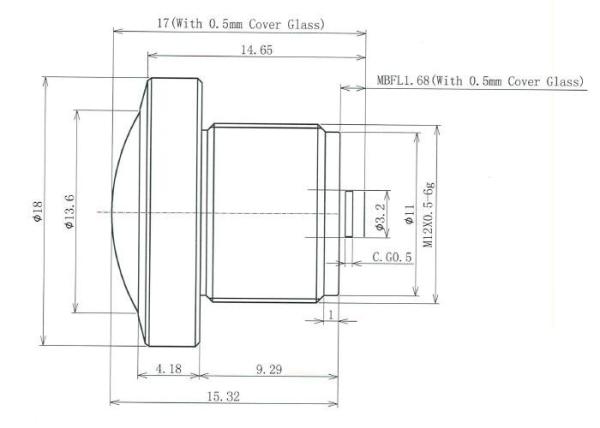

DIMENSION(mm) Φ18x15.32
LENS COMPOMEMT 6-5(1ASG)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
