1/4" 2.3mm F2.6 MP M8 mount 124degree Waterproof Wide Angle Lens for OV9712/JX-H42, waterproof automotive camera lens

Name: 14quot 23mm F26 MP M8 mount 124degree Waterproof Wide Angle Lens for OV9712JXH42 waterproof automotive camera lens
Brand: CCOM LENS
Price: 1 USD

China 1/4" 2.3mm F2.6 MP M8 mount 124degree Waterproof Wide Angle Lens for OV9712/JX-H42, waterproof automotive camera lens factory

Brand Name : CCOM LENS

Model Number : 14023MPF-M8(W)

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Camera Lens : Waterproof CCTV Video Lens

Optical Lens : M8 mount wide-angle Lens

TV Lens : 1/4" 1/5" sensor lens

Material : 4G+IR

Contact Now

Waterproof 1/4" 2.3mm F2.6 Megapixel M8*0.5 Mount 124degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 2.3mm M8 lens for OV9712/JX-H42 sensors

Model 14023MPF-M8(W)
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Ø 5.1mm
FOCAL LENGTH 2.3mm
F.O.V (D*H*V) OV9712: 124°*97°*57°; JX-H42: 121°*98°*52°
DISTORTION OV9712: H -11%, V -32.9%; JX-H42: H -9.5%, V -33.5%
APERTURE F2.6
RESOLUTION MP
MOUNT M8xP0.5
IRIS Fixed
B.F.L. 3.73mm
F.B.L. 1.67mm
T.T.L. 14.88 mm
DIMENSION Φ14×(12.81±0.3)mm
LENS COMPOMENT 4G+IR
CUT FREQUENCY AT 50% 640±8nm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 mount is optional.

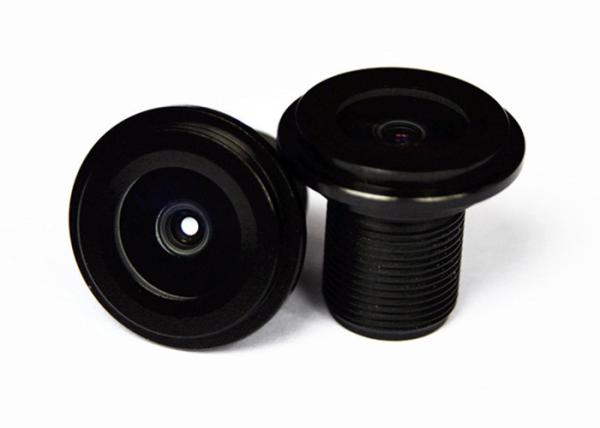

1/4" 2.3mm F2.6 MP M8 mount 124degree Waterproof Wide Angle Lens for OV9712/JX-H42, waterproof automotive camera lens Images
