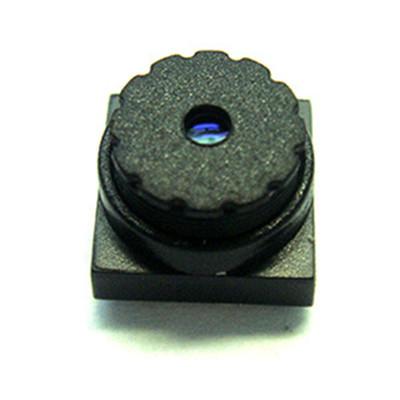

1/4" 4.2mm F2.6 Megapixel M7x0.35 mount non-distortion lens, 4.2mm M7 lens

Name: 14quot 42mm F26 Megapixel M7x035 mount nondistortion lens 42mm M7 lens
Brand: CCOM LENS
Price: 1 USD

China 1/4" 4.2mm F2.6 Megapixel M7x0.35 mount non-distortion lens, 4.2mm M7 lens factory

Model Number : 14042MP-M7 14042MPF-M7

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Camera Lens : Digital Camera Video Lens

Optical Lens : M7 mount Lens

TV Lens : non distortion lens

Material : 4P+IR-CUT

Brand Name : CCOM LENS

Contact Now

1/4" 4.2mm F2.6 Megapixel 60degree non-distortion M7*0.35 mount lens for digital cameras/computer/electronic video devices, 4.2mm M7 mount lens

Model: 14042MPF-M7
SENSOR SIZE: 1/4"

EFFECTIVE IMAGE CIRCLE: Φ5.6mm
FOCAL LENGTH(mm): 4.2
F.O.V.(D): 60°
RESOLUTION: MP
OPTICAL DISTORTION: <1.2%
APERTURE: F2.6
MOUNT(mm): M7xP0.35
IRIS: Fixed
M.O.D.: 20mm
F.B.L.(mm) 0.80
T.T.L.(mm): 5.10
C.R.A. <24.6°
LENS COMPOMEMT: 4P+IR
DIMENSION: Φ7.0x4.3mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7 mount lens holder available

Effect & Distortion tests:

1/4" 4.2mm F2.6 Megapixel M7x0.35 mount non-distortion lens, 4.2mm M7 lens
