1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor

Name: 118quot 068mm F30 M21xP015 Mount medical endoscope lens for OV6920OV6922 sensor
Brand: CCOM LENS
Price: 1 USD

China 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor factory

Model Number : 118068

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Brand Name : CCOM LENS

Camera Lens : Medical Lens

Optical Lens : Endoscope Lens

Material : 2P (no IR-Cut filter)

Mount : M2.1xP0.15

Contact Now

1/18" 0.68mm F3.0 M2.1xP0.15 micro medical endoscope lens for OV6920/OV6922, medical video equipment lens

This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.

Model: 118068
IMAGE FORMAT: 1/18"
SENSOR: OV6920(CSP)
SENSOR SIZE: 0.8mm(H)*0.6mm(V)*1.0mm(D)
FOCAL LENGTH: 0.68mm (±5%)
MAX IMAGE CIRCLE: Φ1.2mm
F.O.V: 90°(D)*68°(H)*50°(V)
RESOLUTION: VGA
DISTORTION: <10%
APERTURE: F3.0 (±5%)
MOUNT: M2.1XP0.15
B.F.L.: 1.121mm
M.O.D.: 0~50mm
T.T.L.: 2.9mm±.01mm(0.4mm cover glass)
LENS CONSTRUCTURE: 2P

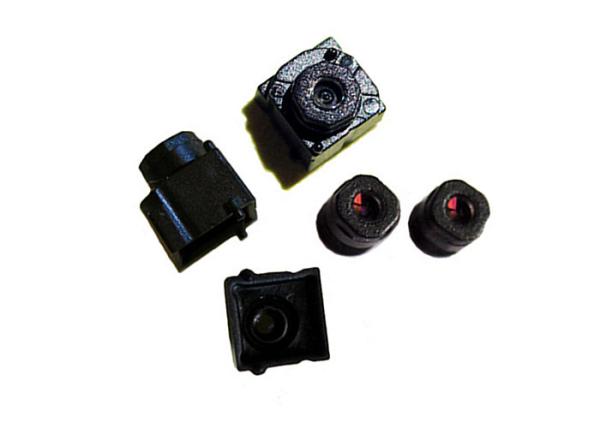

1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor Images
